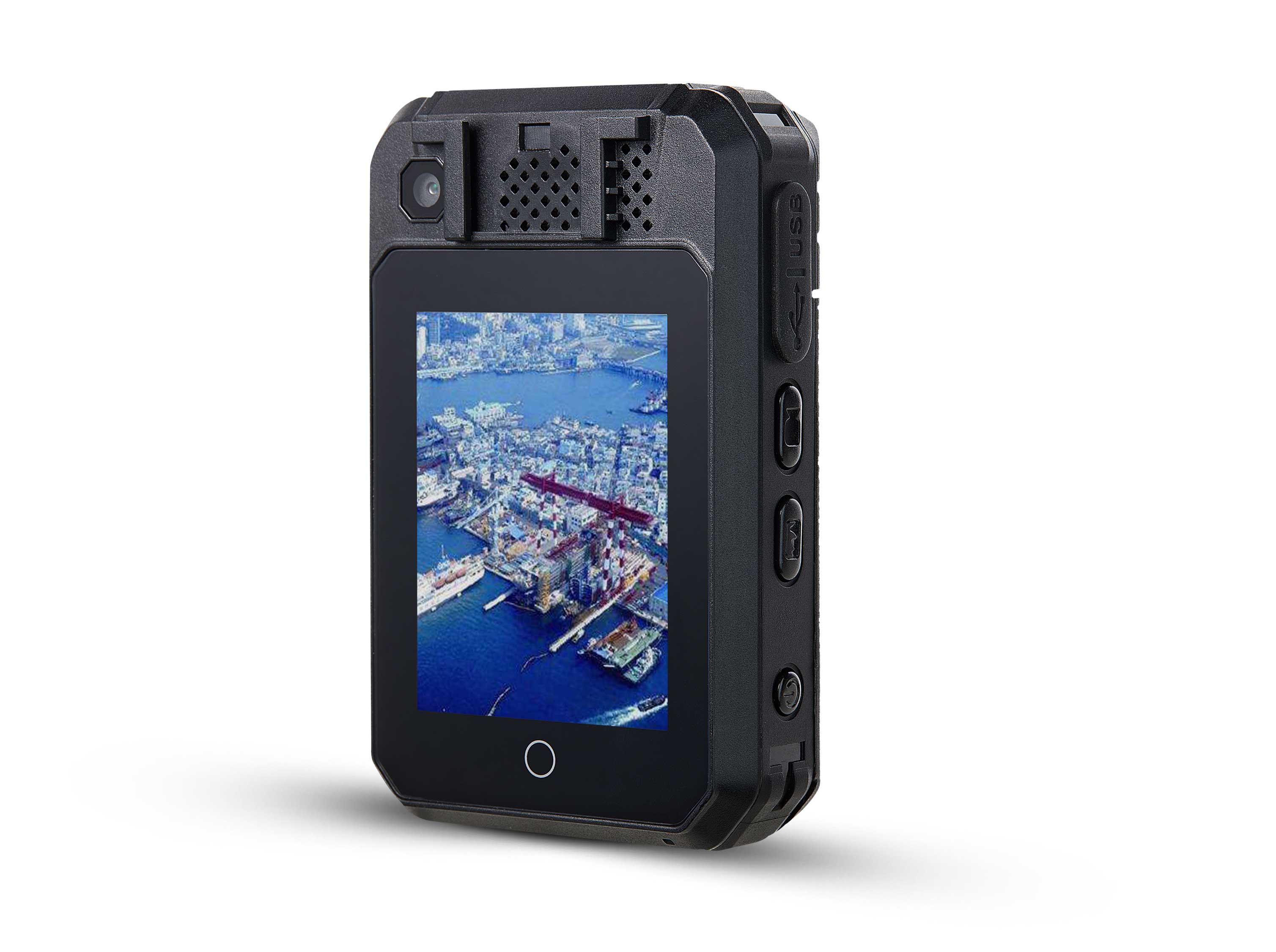

BWC-R3L
4G Intelligent Body Camera
★ Support built-in 4G for live video transmission
★ Support 2K resolution for recording
★ H.265/ H.264 video compression
★ Support 1080P continues working 8 hours
★ Hot-swappable 3050mAh lithium battery
★ 2.4 inches touch screen supported
★ Support built-in GPS for live tracking
★ Support built-in WIFI for uploading
★ Support main and secondary two cameras
★ Built-in storage can extend to 512GB
★ Support network PTT function
★ Auto/ manual night vision supported
★ Optional AI facial recognition supported
★ Small size with light weight
★ Strong customization ability
★ Support 2K resolution for recording
★ H.265/ H.264 video compression
★ Support 1080P continues working 8 hours
★ Hot-swappable 3050mAh lithium battery
★ 2.4 inches touch screen supported
★ Support built-in GPS for live tracking
★ Support built-in WIFI for uploading
★ Support main and secondary two cameras
★ Built-in storage can extend to 512GB
★ Support network PTT function
★ Auto/ manual night vision supported
★ Optional AI facial recognition supported
★ Small size with light weight
★ Strong customization ability
Basic Configuration | Operating system | Android 9.0 |
| CPU | MTK platform, 8 corel 64bit, 2.3GHz | |
| Memory | 2G+16G/2G+32G/4G+64G/4G+256G/4G+512G optional | |
| Storage capacity | 32G/ 64G/128G/256G optional | |
| Cameras | Main camera: OV4689, 4M | |
| Secondary camera: GC2385, 2M | ||
| Sensor | G-sensor | |
| Lens | 110° horizontal angle of view | |
| Screen | 2.4 inches touch screen | |
| Interface | Support Type-C USB2.0 | |
| 4G band | TDD-LTE Band38/39/40/41 | |
| WIFI | 802.11 a/b/g/n/ac, support both 2.4GHz, 5GHz | |
| Bluetooth | BT5.0, for wireless earphone | |
| Satellite positioning | GPS/ GLONASS | |
| Status remind | Vibration or voice | |
| Button | ON/OFF, Video, audio recording, Snapshot, Video mark, SOS button, Mult-function button, PTT button | |
| NFC | Optional | |
| Protocol | Support ONVIF, RTMP, RTSP,FTP, WebRTC and other streaming media protocols and SIP protocol | |
| Compatibility | Support to install third-party app | |
| Related software | BWC Helper, BWC Manager, BWC Tool, PMedia Software | |
| Language | English/ Russian/ Spanish/ Arabic/ Vietnamese etc. optional | |
| Startup log | Support to customize startup logo | |
| Recording resolution | 2K30FPS, 1080P30FPS, 720P30FPS, 480P30FPS | |
| Video | Dual streaming | Main streaming for local recording, sub-streaming for live streaming |
| Live streaming resolution | 2K (optional), 1080P, 720P, 480P | |
| Encoding | H.264/H.265 | |
| Video format | MP4 | |
| Video clip | Auto, 1min, 3min, 5min, 10min, 20min, 30min optional | |
| Pre-recording | Up to 60 seconds | |
| Post-recording | OFF, 10s, 30s, 1min, 2min, 5min, 10min, 30min optional | |
| Snapshot | Burst interval | 2s, 3s, 5s, 10s, 20s, 30s optional |
| Picture format | JPG, 42M | |
| Night Vision | Distance | Up to 10 meters |
| IR switch | Auto or manual | |
| White light | Manual | |
| Power | Battery capacity | 3050mAh |
| Standby time | 250 hours | |
| Working time | 1080P continues working 9 hours, 720P continues working 8.5 hours | |
| Charging time | Less than 2.5 hours | |
| Structure | Weight | 160g (clip is not included) |
| Dimension | 91*58*28（mm） | |
| Drop resistance | 1.8 meters | |
| IP grade | IP66 | |
| Working temperature | -10~55℃ | |
| Light | Indicator light | Video recording: red light is flashing |
| Audio recording: yellow light is flashing | ||
| Standby: green light is always on | ||
| Live streaming: blue light is flashing | ||
| Quality | Certification | CE, FCC, UN38.3 |
| Package | Packing list | 1x R3L body camera, 1x Charger, 1x USB-C cable, 1x Clip |
