★ Charging Time-out Protection
★ Intelligent Charging Mode
★ High-efficiency Charging
★ Anti-slip Base Design

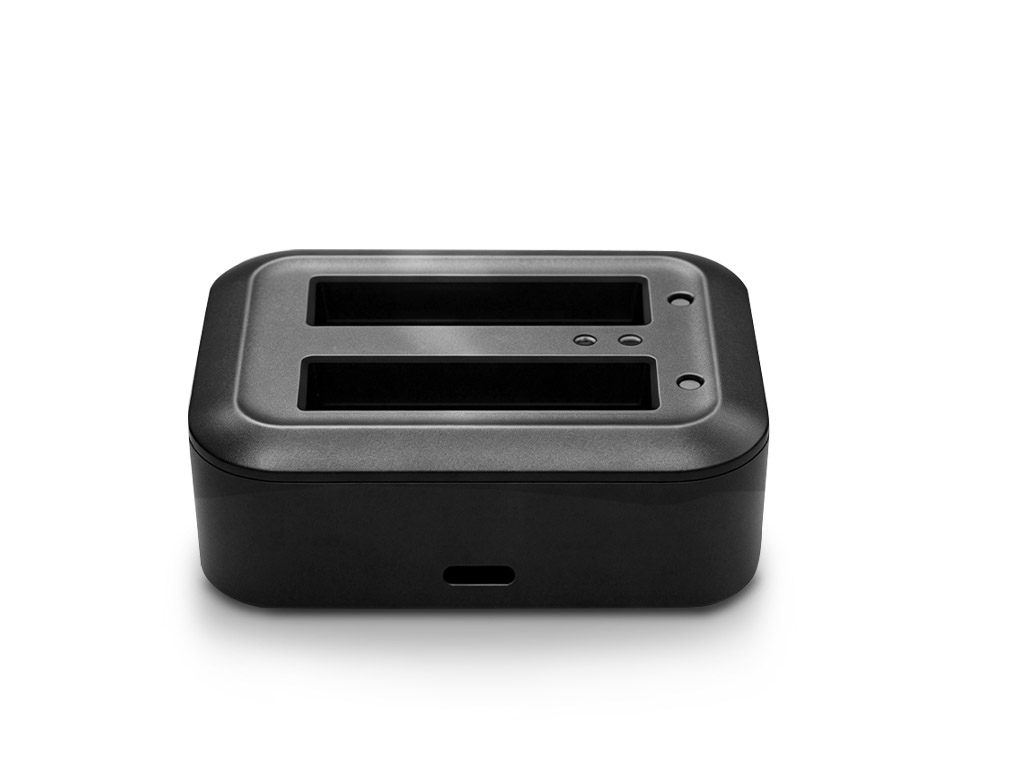

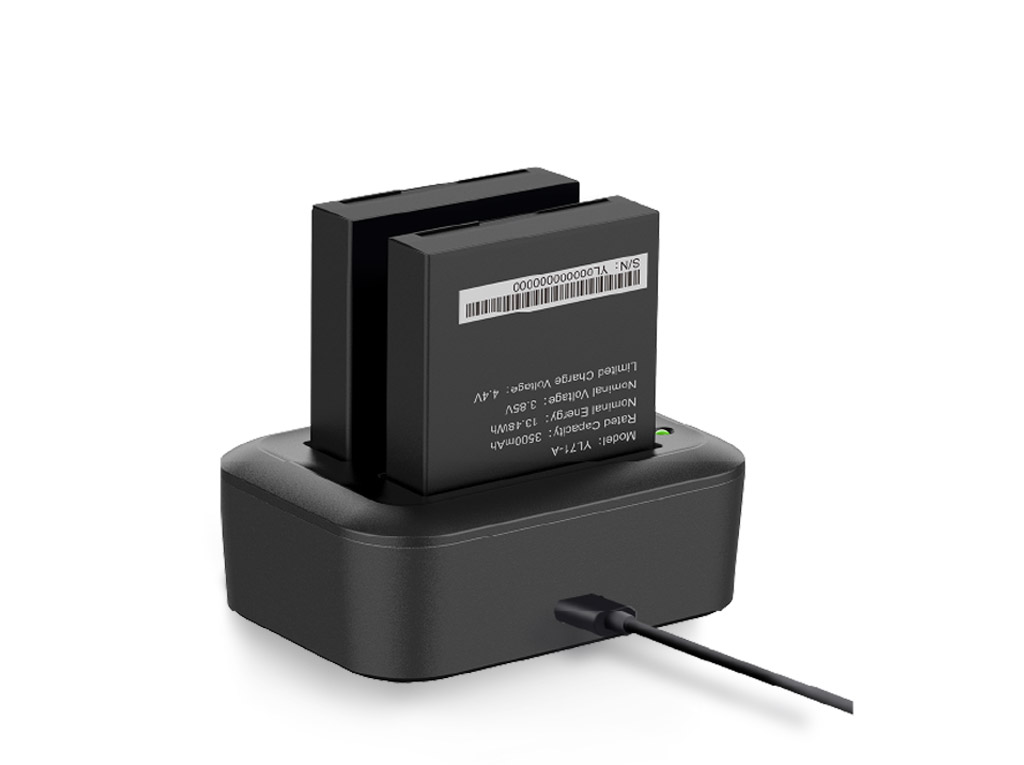

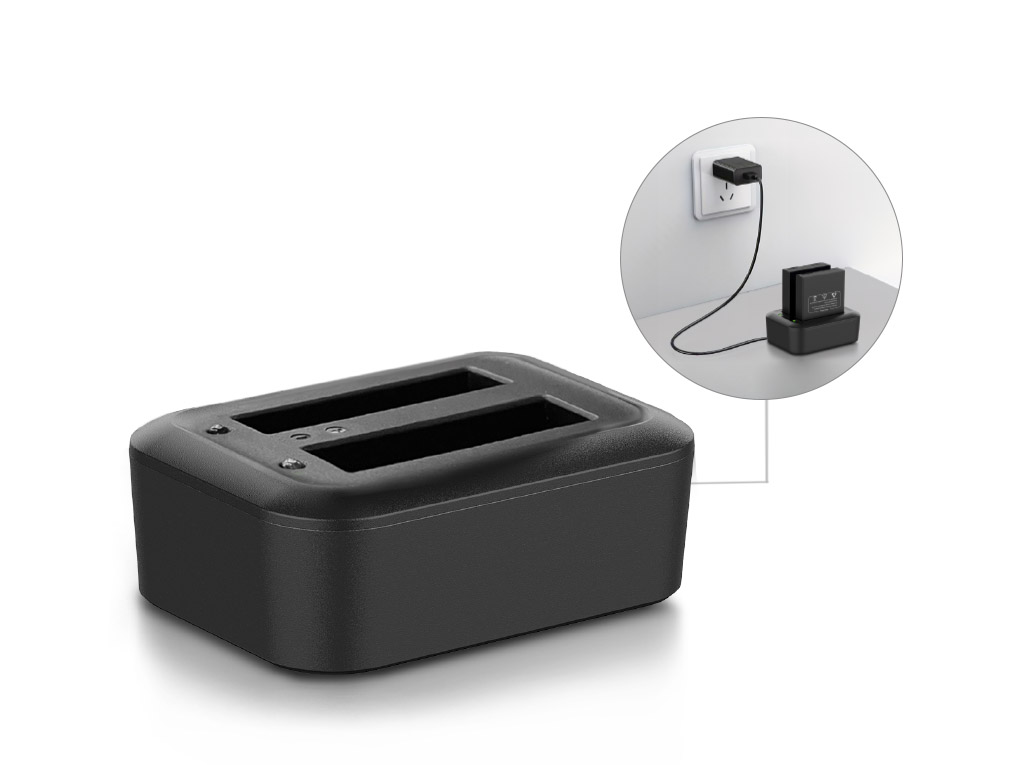

Product Introduction
This compact and easy to operate charging device adopts advanced dual channel intelligent charging technology. It can automatically identify battery power status to realize fast and safe charging.
Product Highlights
Dual-core Design
Automatically stops charging upon full capacity; equipped with 24 hour timeout protection to prevent battery damage from prolonged charging for enhanced safety.
Intelligent Charging Mode
Complete trickle / constant-current / constant-voltage charging cycle.
High efficiency Charging
Plug and charge with low operating temperature and long service life.
Anti-slip Base Design
Built in anti slip pad keeps the unit stable and prevents displacement.
Product Specifications
Item | Specification |
Input Power | DC 5V 2A or 10V 4A |
Power Input Interface | Type C |
Status Indication | Green LED steady on for no load power on; Red LED steady on during charging; Green LED steady on upon |
Over voltage Protection | Supported |
Auto stop When Fully Charged | Supported |
Time out Protection | Automatically cuts off circuit if battery remains inserted for 24 hours |
Charging Efficiency | 93% |
Compatible Battery Types | Normal temperature battery, explosion proof battery, low temperature battery |
Operating Temperature | 0℃ ~ 45℃ |
Storage Temperature | -20℃ ~ 65℃ |
Relative Humidity | 5% ~ 95% |
Dimension | 76mm*56mm*28mm |
Weight | About 49g |
Housing | Black, ABS fire retardant material |
